7/16F-1/2R
Our products have been widely used in communication, medical, automotive, military, aerospace and other fields, and exported to overseas markets.
Keywords: RF coaxial connector 丨 connector
Product Description
7/16 series connectors is a kind of big size,thread interface rf coaxial connectors.Meet the specification of CECC 22190 and IEC 60169-4.With the advantages of low loss,high power transmission and performace,stable and robustness connection.This kind of connectors is suitable for outdoor and tower mounted applications.
KEY PERFORMANCE
| IMPEDANCE | 50Ω | |
| FREQUENCY RANGE | 0-7.5GHz | |
| VSWR | ≤1.3 | |
| CONTACT RESISTANCE | CENTER CONDUCTOR | ≤1mΩ |
| OUTER CONDUCTOR | ≤0.25mΩ | |
| INSULATION RESISTANCE | ≥5000MΩ | |
| DIELECTRIC EITHSTANDING VOLTAGE | 2700V | |
| TEMPERATURE RANGE | -55℃~+155℃ | |
| DURABILITY | 500 CYCLES | |
MATERIAL & PLATING
| PART NAME | MATERIAL & PLATI NG | |
| OUTER CONDUCTOR | BRASS, CuSnZn OR SILVER | |
| CENTER CONDUCTOR | MALE | BRASS, GOLD OR SILVER |
| FEMALE | PHOSPHOR BRONZE, GOLD OR SILVER | |
| INSULATOR | PTFE | |
| SEAL RING | SILICONE RUBBER | |
| CRIMP FERRULE | BRASS, NICKEL | |

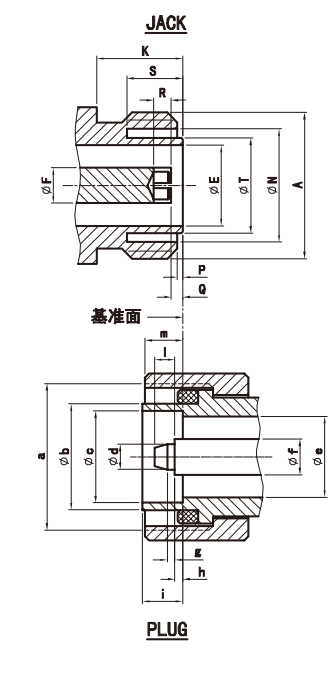

INTERFACE MATI NGDI MENSI ONS ( mm)
| JACK | ||
| code | min. | max. |
| A | M29x1.5 | |
| E | 15.85 | 16.25 |
| F | 7.0 | |
| K | 10 | -- |
| N | 22.1 | 22.9 |
| P | 0.5 | 0.7 |
| Q | 1.77 | 2.07 |
| R | 5 | -- |
| S | 8.1 | -- |
| T | 17.84 | 18.02 |
Note: The dimensions marked with * are allowed to protrude from the reference plane by less than 0 05 or below the reference plane ＜ 0 eighteen
| PLUG | ||
| code | min. | max. |
| a | M29x1.5 | |
| b | 20.6 | 21.4 |
| C | 18.03 | 18.21 |
| d | 4.96 | 5.04 |
| e | 15.85 | 16.25 |
| f | 7.0 | |
| g | 1.4 | 1.6 |
| h | 1.47 | 1.77 |
| i | 7.0 | 8.0 |
| 1 | -- | 4.5 |
| m | 7.0 | 9.0 |
