MMCX-50JH2
Our products have been widely used in communication, medical, automotive, military, aerospace and other fields, and exported to overseas markets.
Keywords: RF coaxial connector 丨 connector
Product Description
MMCX connectors is incorporate a snap on latching action for ease of connection.Meet the specification of CECC22340.Only half size of MCX connectors.With the advantages of micro size,easy use,high performance and reliable connection.Widly used in small szie communication devices.
KEY PERFORMANCE
| IMPEDANCE | 50Ω | |
| FREQUENCY RANGE | 0-6 GHz | |
| VSWR | ≤1.25 | |
| CONTACT RESISTANCE | CENTER CONDUCTOR | ≤5mΩ |
| OUTER CONDUCTOR | ≤2.5mΩ | |
| INSULATION RESISTANCE | ≥1000 MΩ | |
| DIELECTRIC EITHSTANDING VOLTAGE | 500V | |
| TEMPERATURE RANGE | -40℃~+90℃ | |
| ENGAGEMENT FORCE | <18N | |
| SEPARATION FORCE | 6-18N | |
| CENTER CONTACT CAPTIVATION FORCE | >10N | |
| DURABILITY | 500 CYCLES | |
MATERIAL & PLATING
| PART NAME | MATERIAL & PLATI NG | |
| OUTER CONDUCTOR | BRASS, GOLD | |
| CENTER CONDUCTOR | MALE | BRASS, GOLD |
| FEMALE | BERYLLIUM BRONZE, GOLD | |
| INSULATOR | PTFE | |
| SEAL RING | BERYLLIUM, GOLD | |
| CRIMP FERRULE | BRASS, GOLD OR NICKEL | |

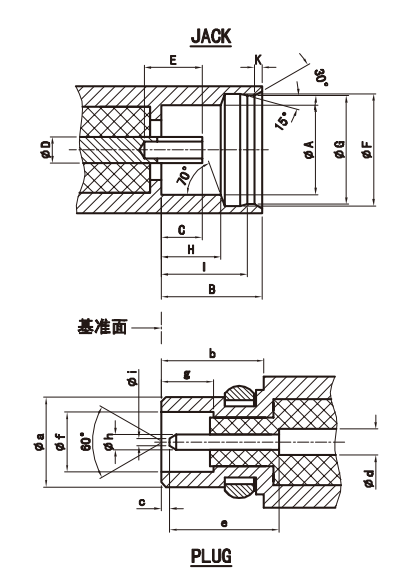

INTERFACE MATI NGDI MENSI ONS ( mm)
| JACK | ||
| code | min. | max. |
| A | 2.41 | -- |
| B | 2.6 | -- |
| C | 0.9 | 1.2 |
| D | 0. | 7 |
| E | 1.4 | -- |
| F | 3 | 3.04 |
| G | 2.88 | 2.9 |
| H | 1.57 | 1.63 |
| I | 2.3 | 2.34 |
| K | -- | 0.23 |
Note: The dimensions marked with * are allowed to protrude from the reference plane by less than 0 05 or below the reference plane ＜ 0 eighteen
| PLUG | ||
| code | min. | max. |
| a | -- | 2.4 |
| b | 2.7 | -- |
| C | 0 | 0.25 |
| d | 0.7 | |
| e | -- | 3.15 |
| f | 1.58 | 1.62 |
| g | 1.45 | -- |
| h | 0.38 | 0.42 |
| i | -- | 0.2 |
