MCX-50KY
Our products have been widely used in communication, medical, automotive, military, aerospace and other fields, and exported to overseas markets.
Keywords: RF coaxial connector 丨 connector
Product Description
MCX connectors is incorporate a snap on latching action for ease and fast connection.Meet the specification of IEC 61169-36. With the advantages of easy use,high performance and maximum reliability and robustness connectors.This kind of connectors is suitable for the places which have limited spaces.
KEY PERFORMANCE
| IMPEDANCE | 50/75Ω | |
| FREQUENCY RANGE | 50Ω | 0-6 GHz |
| 75Ω | 0-1.5 GHz | |
| VSWR | 50Ω | ≤1.2 |
| 75Ω | ≤1.35 | |
| CONTACT RESISTANCE | CENTER CONDUCTOR | ≤5mΩ |
| OUTER CONDUCTOR | ≤2.5mΩ | |
| INSULATION RESISTANCE | ≥1000 MΩ | |
| DIELECTRIC EITHSTANDING VOLTAGE | 750V | |
| TEMPERATURE RANGE | -55℃~+125℃ | |
| ENGAGEMENT FORCE | <25N | |
| SEPARATION FORCE | 8-20N | |
| CENTER CONTACT CAPTIVATION FORCE | >10N | |
| DURABILITY | 500 CYCLES | |
MATERIAL & PLATING
| PART NAME | MATERIAL & PLATI NG | |
| OUTER CONDUCTOR | BRASS, GOLD OR NICKEL | |
| CENTER CONDUCTOR | MALE | BRASS, GOLD |
| FEMALE | BERYLLIUM BRONZE, GOLD | |
| INSULATOR | PTFE | |
| SEAL RING | BERYLLIUM BRONZE, GOLD | |
| CRIMP FERRULE | BRASS, GOLD OR NICKEL | |

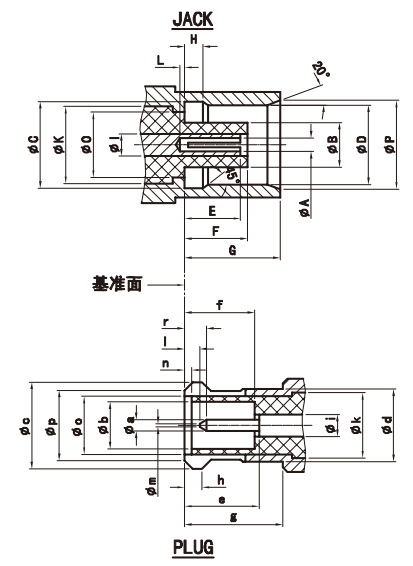

INTERFACE MATI NGDI MENSI ONS ( mm)
| JACK | ||
| code | min. | max. |
| A | -- | -- |
| B | -- | 1.98 |
| C | 3.6 | 3.75 |
| D | 3.42 | 3.48 |
| E | 2.3 | 2.8 |
| F | 2.6 | 2.8 |
| G | 4 | 4.12 |
| H | 0.75 | 0.85 |
| I | -- | -- |
| K | 3.05 | |
| L | 0 | -- |
| 0 | -- | 3 |
| P | 3.8 | -- |
Note: The dimensions marked with * are allowed to protrude from the reference plane by less than 0 05 or below the reference plane ＜ 0 eighteen
| PLUG | ||
| code | min. | max. |
| a | 0.48 | 0.53 |
| b | 2 | -- |
| C | -- | 3.8 |
| d | -- | 3.4 |
| e | 2.8 | 3.2 |
| f | 2.8 | -- |
| g | 4.15 | -- |
| h | -- | -- |
| i | -- | -- |
| k | 3.05 | |
| 1 | 0.15 | -- |
| m | -- | 0.25 |
| n | 0 | 0.3 |
| O | -- | 3 |
| P | -- | 3.6 |
| r | -- | 1.2 |
